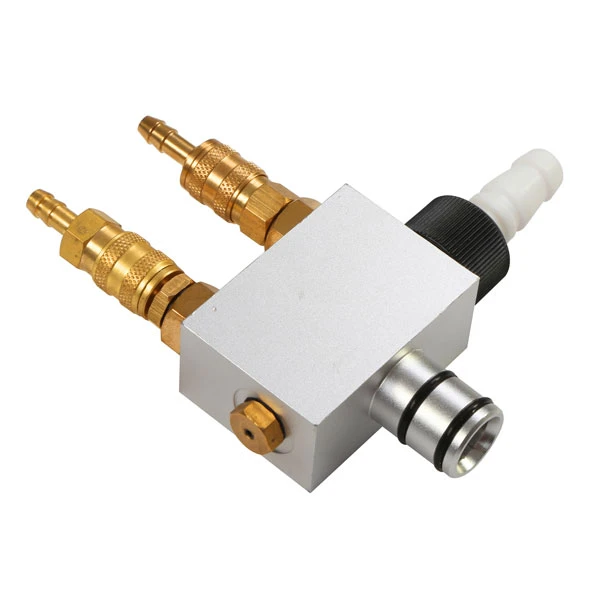

Powder injector PI-P1 0241621
Powder injector PI-P1 0241621
Model
CL 0241621

Item specifics

Condition
New
Type
powder coating gun, Coating Spray Gun
Substrate
metal, metal workpiece
Coating
Powder Coating, Powder Coating gun
Certification
CE
After-sales Service Provided
Overseas service center available

Review

Description

1.Powder injector 241621
2.manual spray gun
3,Powder injector 241621

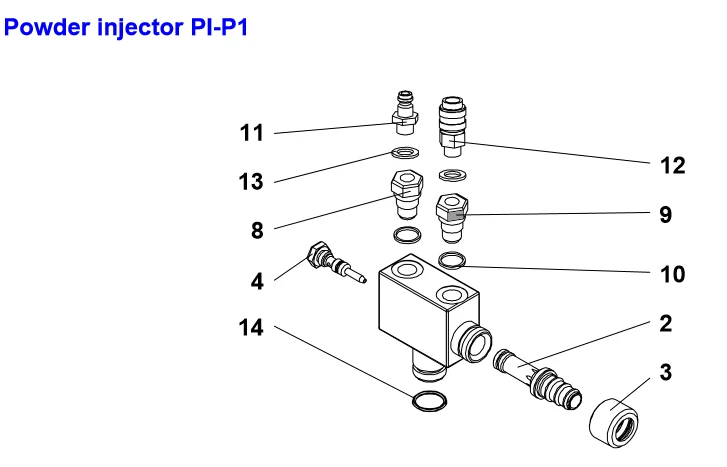

W-P-1




 0241621 Powder injector PI-P1

 2 0241285 * Collector nozzle

3 0241466 Outer nut

4 0241923 * Injector nozzle ET

8 0241460 Spring check valve

9 0241461 Spring check valve with choke (marked in black)

10 9970149 Sealing ring

11 9992709 Quick-release plug

12 9992710 Quick-release socket

13 9970150 Sealing ring

14 9974023 * Conductive O-ring



COLO Powder Coating Systems is a top supplier of powder coating systems and powder coating equipment including manual powder coating equipment, automatic equipment, spray booths,ovens and spare parts for famous brand in China.



Powder injector 241621



The process of the coating is like this: The powder is fluidized in the powder hopper. The injectors transport the powder through the hoses to the guns. The guns spray a powder/air mixture onto the workpieces
