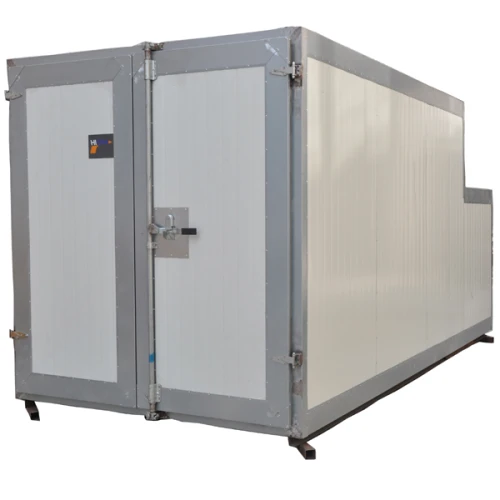

Gas powder coating curing oven

Description of Gas powered furnace powder paint curing oven

Feaures

• ^{Patented internal high volume duct system}

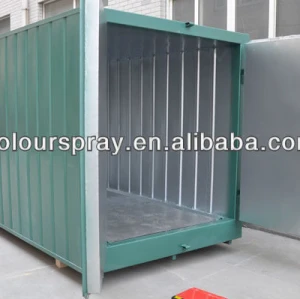

• ^{Walls and roof comprised of galvanised steel plates with high-density} Rockwool insulation at 100mm thick.
• ^{Our advanced design and high quality manufacturing process leads to remarkably low running costs}

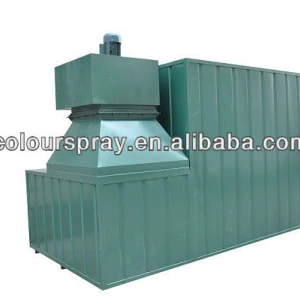

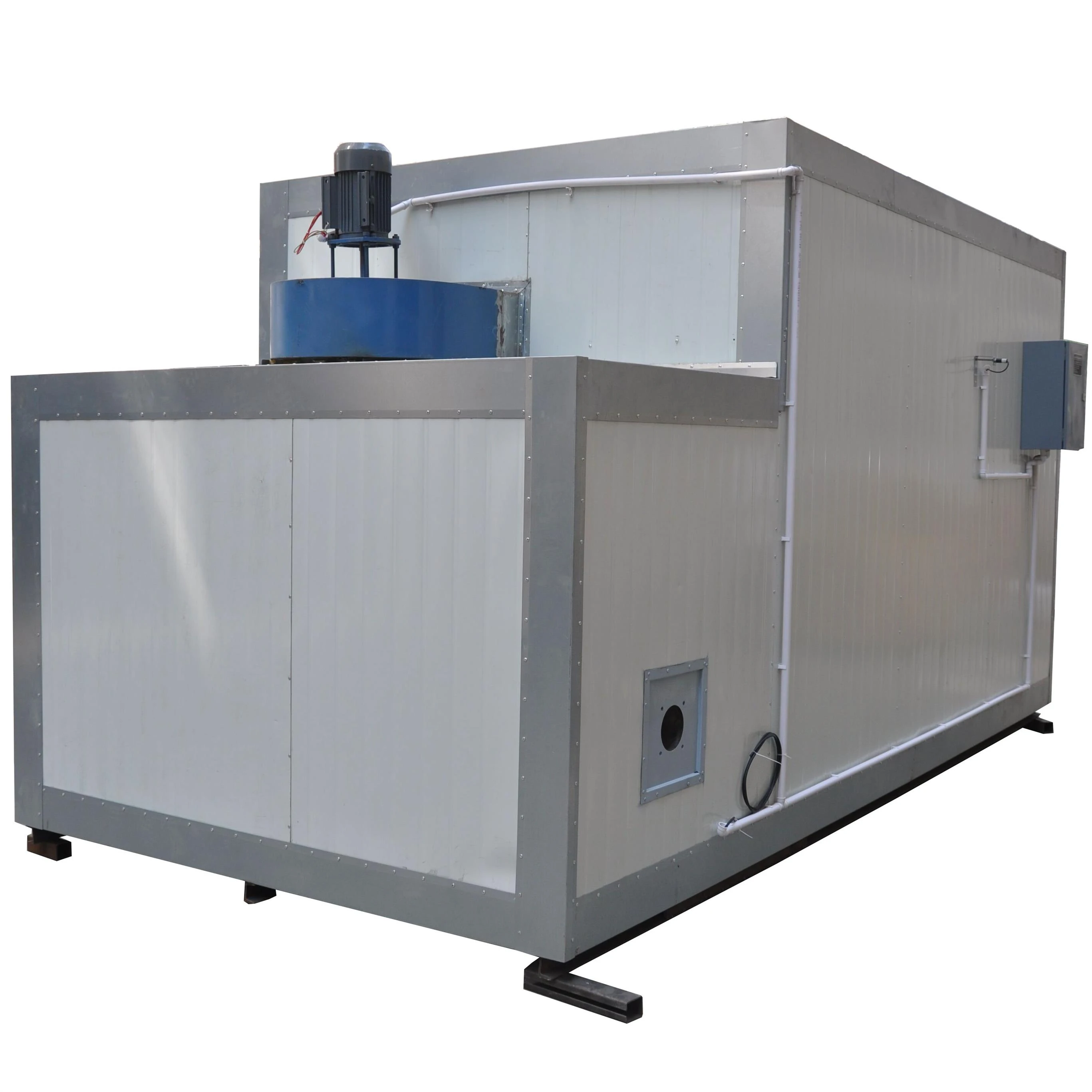

• ^{Powerful centrifugal fans and our patented high volume internal duct system allow highly efficient running and give an even heat throughout.}

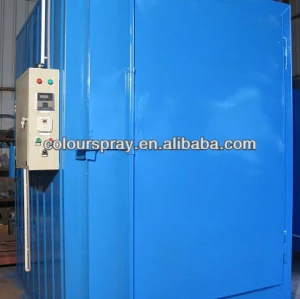

• ^{Our ovens are controlled by a PLC control panel. This allows accurate cure timing and helps improve fuel efficiency.}
• ^{High quality burners – tried and tested over many years}
• ^{Internal escape mechanism}
• ^{Flat packed for easy transportation and installation}
• ^{Each oven is built and tested before shipping. The test includes: Heat distribution check to eliminate any hot or cold spots, correct air/gas mixture to eliminate carbon monoxide gases and to ensure economical running. We also check the internal escape mechanism.}
• ^{CE mark}
• ^{Fully guaranteed}
• ^{Service contracts available}
• ^{Optional insulated floor is comprised of 100 mm thick layer of insulated fibres and a steel plate cover, which allows trolleys to be used to carry products in and out of the oven.}

Specification

Worksize dimensions 2000mm width x 2000mm height x 5000mm depth

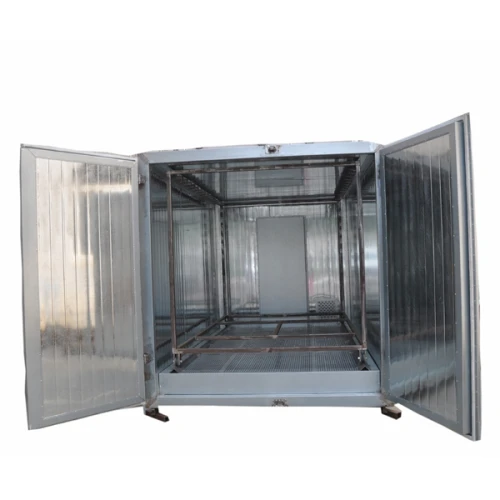

Door type Double sided, drive-through

Power supply Gas/LPG/Diesel

Voltage/Frequency 380V/220v(50-60hz)

Warm-up time 15-30 min. (180-220° C)

Homogeneity < ± 3°C if 185°C

Temperature stability < ± 1-3°C

Temperature max. 250° C

Ventilation performance 805-1677m3/h

Transport Top

Air circulation Forced

Capacity 20000L

Warranty 12 months
