Manual electrostatic Powder coating machine
- Price
- US $900-1500
- Model
- COLO-800D
- MOQ
- 1 piece
Item specifics
- Condition
- New
- Type
- Manual powder coating machine
- Substrate
- Steel
- Coating
- Powder Coating
- Voltage
- 100-240V
- Power(W)
- 50W
- Dimension(L*W*H)
- 120*80*80CM
- Weight
- 55KGS
- Certification
- CE
- Warranty
- 1 YEAR
Review
Description
This manual electrostatic Powder coating machine can coat all kinds of shapes.
Specification:
| Electrical data | |
| Mains input voltage | 100-240 VAC |
| Operating frequency | 50-60 Hz |
| Input power | 50W |
| Nominal output voltage (to the gun) | max. 12 V |
| Nominal output current (to the gun) | max. 1 A |
| IP54 | |
| Ambient temperature range | 0°C - +40°C (+32°F - +104°F) |
| Max. operating temperature | 85°C (+185°F) |
| Approvals | CE |
| Pneumatical data | |
| Compressed air connection | 1/4" male quick release |
| Max. input pressure | 10 bar / 145 psi |
| Min. input pressure (while unit in operation) | 6 bar / 87 psi |
| Max. water vapor content of the compressed | air 1.3 g/m³ |
| Max. oil vapor content of the compressed air | 0.1 mg/m³ |
| Packing Dimensions | |
| Length | 120 CM |
| Width | 80 CM |
| Height | 80 CM |
| Weight | approx. 55kgs |
Feature :
Manual powder coating system with
1,max electrostatic efficiencied
2,Rapidly cleans the powder inside the gun and powder hose
3,Reduction of powder consumption
MORE FEATURES: 3 coating programs can be stored in thecontrol unit, which includes also 3 preset standardprograms. They are perfectly confi gured tocoat fl at parts, complicated parts,recoat partsand can be easily selected via the display pilot
Product Details

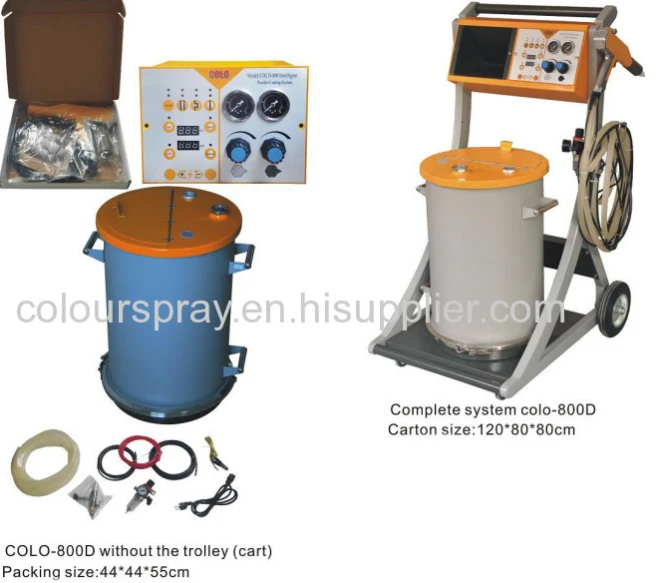

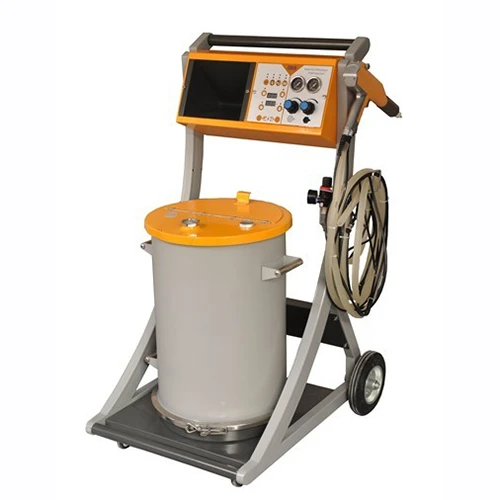

the complete system COLO-800D

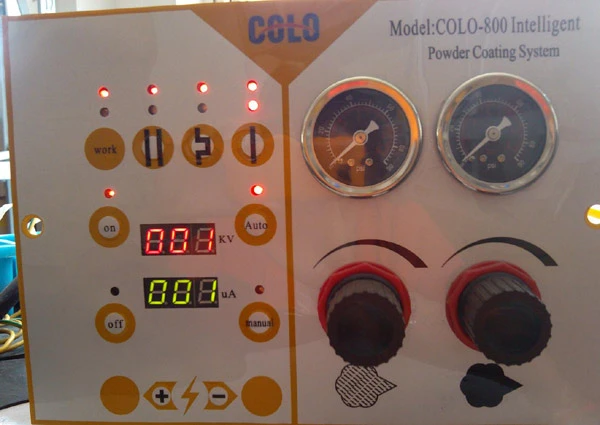

The controller:
the description:
When spraying the workpiece
There have the Model for flat parts paiting, for repeat coating and for comliziert parts.
Very easy to use.

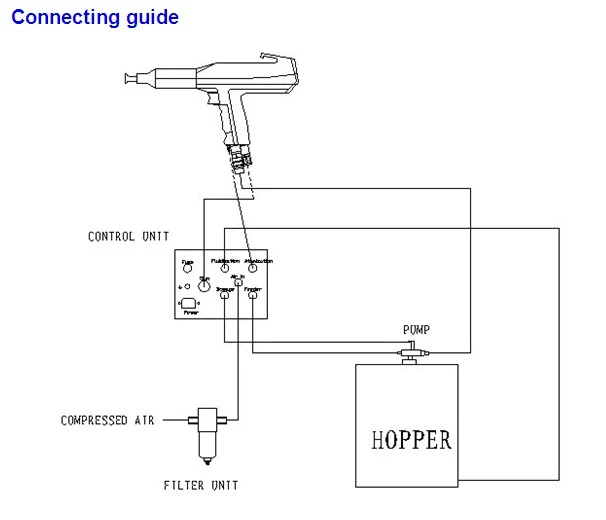

Connection
Packaging &Shipping:
Our service:
We deliver the goods to any ports in China,or deliver to the place as required
Why choose us:
design
drawing
illustration
commissioning
training
technical support
Quality Control:
testing in any step from material supplier to goods deliver.
Company Information:
1,products sample
2,machines
3,production flow:
Customer Visting:
COLO Powder Coating Systems is a top supplier of powder coating systems and powder coating equipment including automated equipment, spray booths and oven and spare parts for famous brand in china.
powder coating gun, powder coating machine, powder coating system,powder coating equipment,powder coating control unit
