Colo-ZQ-04 full automatic lubricating machine for Conveyor Chain System
Colo-ZQ-04 full automatic lubricating machine for Conveyor Chain System
Colo-ZQ-04 full automatic lubricating machine for Conveyor Chain System
Colo-ZQ-04 full automatic lubricating machine for Conveyor Chain System
Price
US $100-200
Model
Colo-ZQ-04
MOQ
1 piece

Item specifics

Brand name
COLO
Model
Colo-ZQ-04

Review

Description

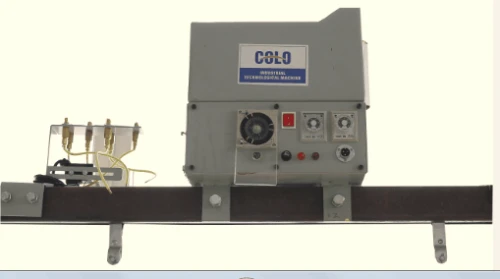

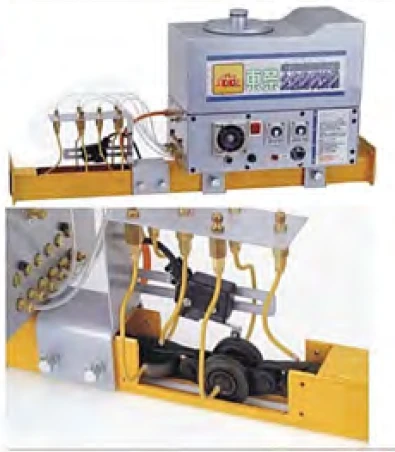

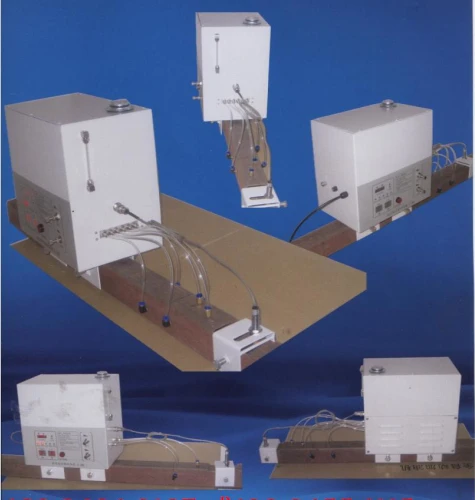

Colo-ZQ-04 full automatic lubricating machine





This full automatic  lubricating machine is designed for all kinds of automatic conveyor chain. The lubricating machine is divided into two parts, the control unit and the lubricant injection seat,which is connected with a transparent tube,this design in order to fit different types of chain,and use the transparent tube , it can easily check the lubricating situation.



This model is used for all various types of conveyor , Peilin chain lubrication and maintenance , protect the whole conveyor system from lack of lubrication, avoid causing failure, save maintenance cost.










Function



ZQ-04 microcomputer automatic lubricating machine, ZQ coating rail lubricating machine six point type, fixed time  / ration / fixed point lubricating.



Fixed time : the smooth operation of the machine, will affect the production costs of enterprises.

In order to reduce fault and pause, must do a good job of regular maintenance.This machine is equipped with "timing device", which is controlled by a touch switch of injection seat and can be started or stopped synchronously with the conveyor belt.According to the equipment working hours , set the lubricating cycle.



Ration: each of the mechanical equipment of the friction point or surface, required amount of lubricant is different.Less lubricant will cause Insufficient lubrication, more lubricant will waste, and even cause pollution.

The machine has six lubricant outlet, each one with the single output, and with an independent lubricant volume adjustment knob.



Fixed point lubricating: The lubrication point on the conveyor belt is ball, shoot nail and link point.For each point of the lubrication gap is very small.For giving lubricant to every point, the machine except the" touch switch ", also force to fixed point lubricating .If the lubricant outlet is not close to the lubrication point, the space is too small so need force to fixed point lubricating.Therefore, this machine is equipped with a wind speed adjustment knob to adjust the pressure, in order to achieve the absolute standard of "fixed point lubricating".







Basic installation method



1.Fix the machine on the chain track, each spray point should be installed on the track corresponding to the chain sprocket bearing, then, install the proximity switch on the track vertical wheel.



2.Power on (AC 220V)



3.Connect to the Air hose(8 mm)





Common troubles and troubleshooting



A.Power problem:

1.first check the power supply 220V is correct, then check the power switch, and then check whether the fuse is damaged,if all above checked is normal, then check if the control transformer  in the control box can output 7V, 19V power , if no output, please replace the transformer.



B.Not only air refueling oil should be according to the methods of inspection

1 first check the lubricant supply system is normal (whether there is leakage around the  lubricating pump)

2 to adjust the atomization adjustment knob with small pressure , to observe whether the lubricant will be ejected.

(If it is still no out of lubricant, please replace the lubricating pump)



C.When machine have the situation with no air and no lubricant

1.First check whether the operation of the intermittent indicator lights, if lights mean that the  intermittent time is not working, this is normal.If want to work well, you can save the data in 15 seconds, which will be set to 2 seconds by manually forcing the operation or setting the time.

2 please check the proximity switch must be induced to the vertical wheel, when chain is running,proximity switch indicator light and no light ,when the panel indicator light and no light, so it works, otherwise should replace proximity switch.

3.check the solenoid valve working power supply is 24V, if there is no 24V please replace the solenoid valve can be.



D.An alarm sound or an alarm lights (which should add lubricant into the machine).
