Electrostatic powder coating drying oven
- Model
- COLO-3518
Item specifics
- product type
- electric powder coating oven
- Brand Name
- COLO
- Power supply
- Electric/ 1.5kw
- Voltage/Frequency
- 380V/220v(50-60hz)
- Warm-up time
- 15-30 min. (180° C)
- Temperature stability
- < ± 1-3°C
- Temperature max.
- 250° C
- Warranty
- 12 months
Review
Description
Description of Electrostatic powder coating indirect heating powder paint oven
Used for curing the workpiece which has been spraying during the powder coating. When a thermoset powder is exposed to elevated temperature, it begins to melt, flows out, and then chemically reacts to form a higher molecular weight polymer in a network-like structure.

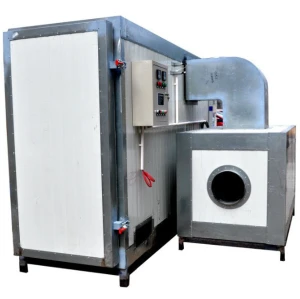

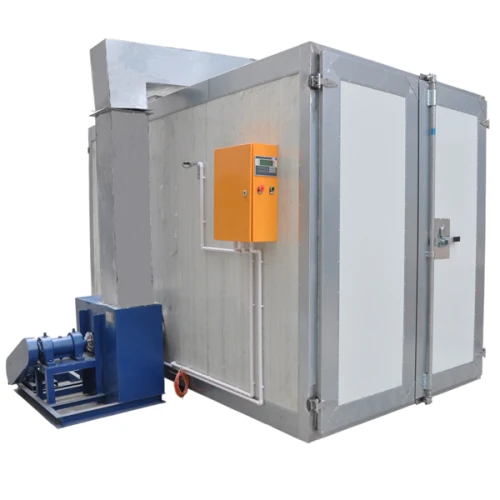

Structure:consist of Body,insulation, cover, heater. use gas to create the energy ,through the circulating fan ,make the temperature in the oven to rise uniformly. Then make the temperature of workpiece to rise.
Built-in track to roll your powder coating racks into the ovens could be ordered together as you required.
Features
1,Precise temperature control, furnace tolerance of +/- 5 degrees Celsius. Indirect heating system with a heat exchanger
2,Hot air is transferred from the bottom up.
3,Heat exchangers used in seamless steel tubes 8x8 array, use the combustion liner 310S stainless steel seamless pipe thickness of 3-4mm.
4,Closed-round clean efficient heat circulation system
5, indirect fired heaters,which deliver clean, breathable heated air to the desired location. Directfired heaters do not filter many of the combustible and toxic fumes producedwith the heated air.
Technical parameters of Gas fired powder coating spray oven
Model | colo-3518 |
Worksize dimensions | 1800 width x 2000 height x 3500 depth |
Overall dimensions | 2150 width x 2400 height x 3500 depth |
Power supply | Gas |
Voltage/Frequency | 380V(50-60hz) |
Warm-up time | 15-30 min. (180° C) |
Temperature stability | < ± 3.0-6°C |
Temperature max. | 250° C |
Burner | Italy Riello, 10,0000cal |
Circulation/ Air flow | Vertical ,Variable through holes on the walls |
Ventilation performance | 1131-2565m3/h |
Motor power | 1.5kW |
Warranty | 12 months |
Application
used for the powder coating and line, plant
Shipping
can ship to any port from Ningbo or Shanghai by sea.
Packing: proper packing suitable for container loading
Services: we supply all equipments about the powder coating, such as booth, oven, reciprocator, gun, line, semi-line and plant.
