manual powder coating unit
- Price
- US $1-800
- Model
- CL-131S
- MOQ
- 1 piece
Item specifics
- Condition
- New
- Type
- Coating Spray Gun
- Substrate
- Copper
- Coating
- Powder Coating
- Voltage
- 100-240 VAC
- Power(W)
- 50W
- Dimension(L*W*H)
- 56*52*69CM
- Weight
- 35KGS
- Certification
- CE
- Warranty
- 1 YEAR
- After-sales Service Provided
- Engineers available to service machinery overseas
- powder coating machine
- manual
- function
- surface treatment
- technical date
- pulse
- powder hopper
- 55L stainless steel
- type
- intelligent model
- Used for
- metallic material powder coating
- KV
- 0-100KV
- Mains input voltage
- 100-240 VAC
- Nominal output voltage (to the gun)
- max. 12 V
- Nominal output current (to the gun)
- max. 1 A
Review
Description

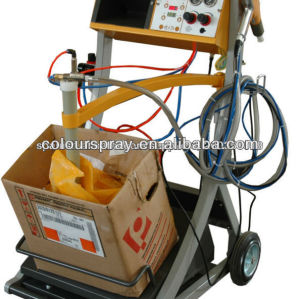

automatic paint spray system , automatic paint coating unit ,aluminum profiles powder painting machine ,Electrostatic powder coating machine ,The CL-131S electrostatic powder manual coating equipment with the
COLO-06 manual powder gun is ideally suited for manual coating of objects in larger series.
The process of the coating is like this :the powder is fluidized in the powder hopper. The injectors transport the powder through the hoses to the guns . The guns spray a powder/air mixture onto the workpieces.
Typical characteristics
- Processing the powder from the fluidized powder hopper
- Quick and simple color change
- Supplied ready for use
- Available with one or two guns (extensible)
CL-131S Electrostatic Powder Manual Coating Equipment,is designed exclusively for electrostatic coating with powder.
0-100 Digital Adjustable KV
Fully Adjustable Amperage
Interchangeable with the Gema original equipment OPTIFLEX
Fully Adjustable Air for Pump on Pressure, Dosage and Nozzle Rinsing Air.
Comes with Full Array of Nozzle Assortment.
Field Tested and Proven to operate in the toughest environments.
Comes with different array of delivery systems:
Because this system is specially balanced for the maximum spray capability with
the Smoothest Finish Possible.
Configuration:
A control unit power supply cable
- A air filter
- A air pressure regulator
- A fluidized powder hopper
- A plug-in injector
- An manual powder gun with gun cable, powder
hose, rinsing air hose and standard nozzle set.
- Pneumatic hoses for conveying air (red), supplementary
air (black) and fluidizing air (black)
powder hose
Ground wire
TECHNICAL DATA
| Electrical data | |||
| Mains input voltage | 100-240 VAC | ||
| Operating frequency | 50-60 Hz | ||
| Input power | 50W | ||
| Nominal output voltage (to the gun) | max. 12 V | ||
| Nominal output current (to the gun) | max. 1 A | ||
| IP54 | |||
| Ambient temperature range | 0°C - +40°C (+32°F - +104°F) | ||
| Max. operating temperature | 85°C (+185°F) | ||
| Approvals | CE | ||
| Pneumatical data | |||
| Compressed air connection | 1/4" male quick release | ||
| Max. input pressure | 10 bar / 145 psi | ||
| Min. input pressure (while unit in operation) | 6 bar / 87 psi | ||
| Max. water vapor content of the compressed | air 1.3 g/m³ | ||
| Max. oil vapor content of the compressed air | 0.1 mg/m³ | ||
| Packing Dimensions | |||
| Length | 120CM | ||
| Width | 79CM | ||
| Height | 73CM | ||
| Weight | approx. 55kgs | ||
| Connection Description | |||
| 1.1 Air In | Compressed air connection (6-10 bar / 87-145 PSI) | ||
| 2.1 Power | Mains cable connection (100-240 VAC) | ||
| 2.2 Gun | Gun cable connection | ||
| 1.4 |
| ||
| 1.3 | Pict | ||
| 1.2 |
| ||
| Grounding connection | Pict |
Packing Dimensions
Length: 69cm
Width: 52cm
Height: 56cm
Weight: 37 kgs.
Manual coating equipment Function description
the powder gun through the powder hose . The powder is electrostatically
charged at the nozzle of the gun. In addition, an electrostatic field is
created between the gun nozzle and the grounded object. The charged
powder spray remains adhered to the surface of the object.
The powder is fluidized by air forced through a porous plastic plate from
below. The powder acquires, thereby, fluid-like characteristics.
The conveying air, supplementary air, and rinsing air are set on the control
Unit
The process of the coating is like this: The powder is fluidized in the powder hopper. The injectors transport the powder through the hoses to the guns. The guns spray a powder/air mixture onto the workpieces
