Manual electrostatic powder coating gun

Suitable for heavy duty work

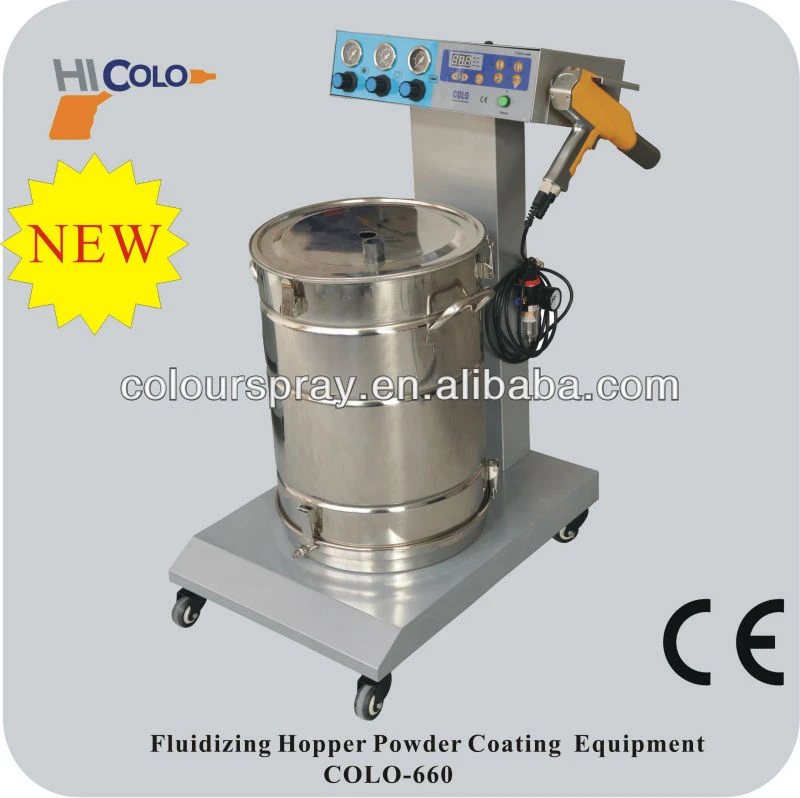

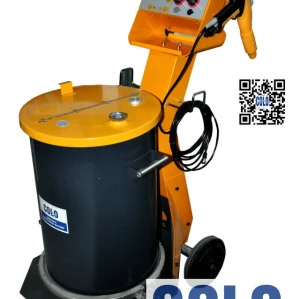

Manual electrostatic powder coating gun

1. CE certificate

2,powder hopper

manual powder coating equipment

built-in high voltage electrostatic generator

1. Powder applicable:

All coating powder specially for metal powder

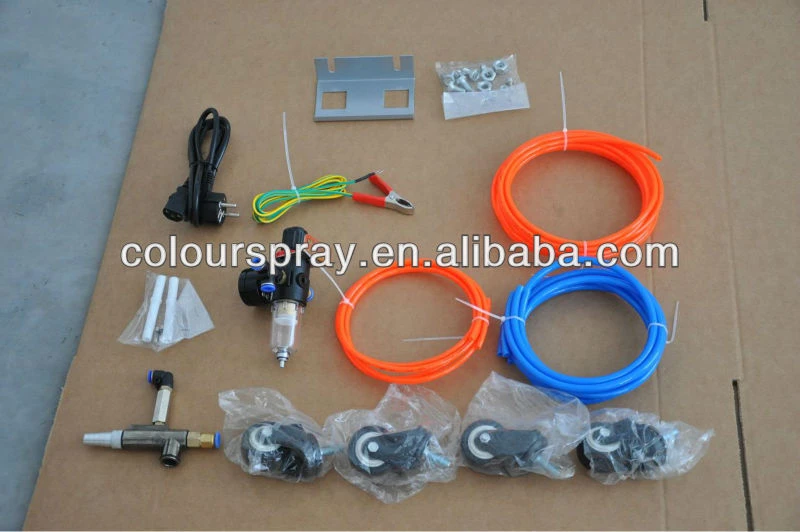

2. Configuration:

Host = 1 pc

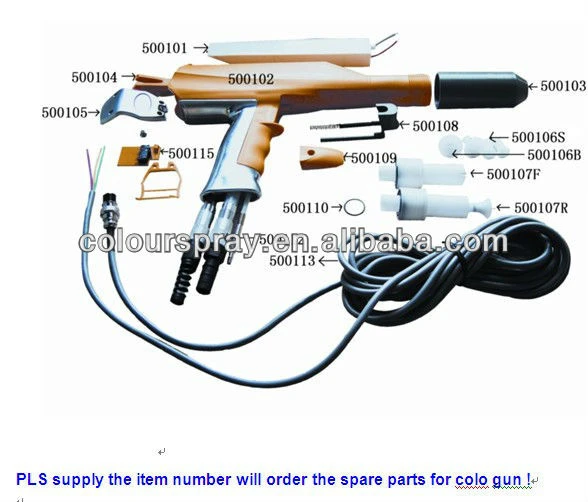

Powder Spray Gun = 1 pc

Powder hopper = 1 pc

Trolley = 1 pc

Powder pump = 1 pc

Oil-water separator = 1 pc

Air pressure regulating valve = 1 pc

Technical data:

Electrical data

Mains input voltage: 220V/110V

Operating frequency:50HZ /60HZ

Powder:50W

Output voltage (to the gun):0-100KV (  adjustable)

Maximum output current (to the gun):     180UA(max)

Protection type:IP54

Approvals:CE Certification

Pneumatical data

Input pressure: min. 6 bar(87PSI)/max. 10 bar(145PSI)

Recommended input pressure: 7 bar(101.5PSI)

Max. water vapor content of the compressed

air 1.3 g/m³

Max. oil vapor content of the compressed air 0.1 mg/m³

Dimensions

Carton size:68x52x84cm  G.W:37kg

powder coating gun, powder coating machine, powder coating system,powder coating equipment,powder coating control unit

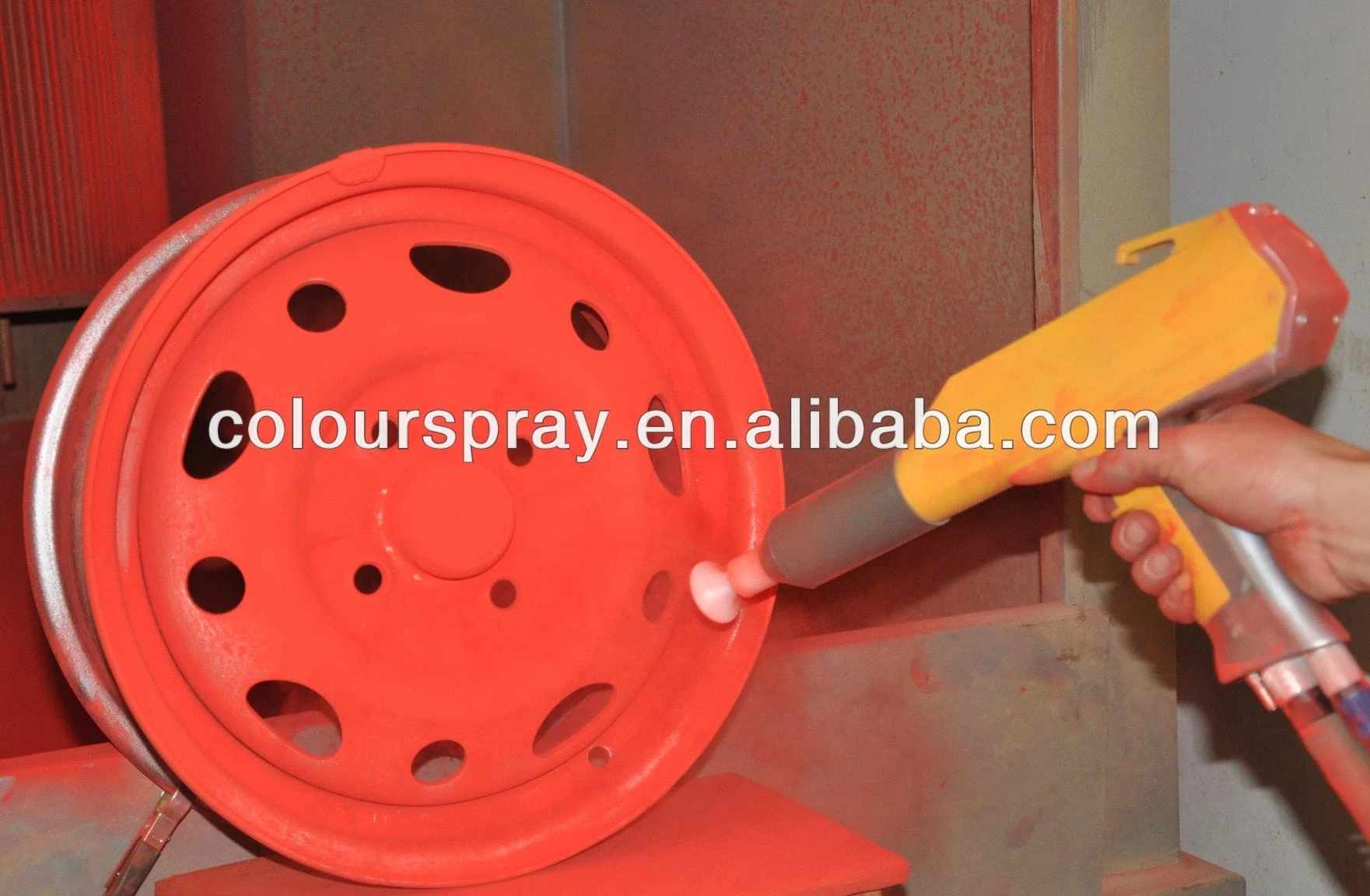

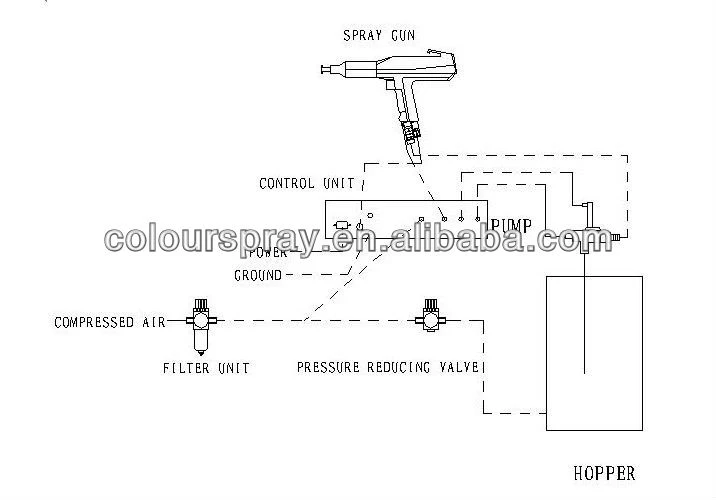

The process of the coating is like this :the powder isfluidized in the powder hopper. The injectorstransport the powder through the hoses to the guns . The guns spray a powder/air mixture onto the workpieces.
