China powder coating spray gun prices

This intelligent   China powder coating spray gun prices is very competitive .

This model use the ITW gema optiflex model trolley and hopper

The process of the coating is like this: The powder is fluidized in the powder hopper. The injectors transport the powder through the hoses to the guns. The guns spray a powder/air mixture onto the workpieces.

Character: Controller has one-touch intelligent operation button good for flat parts, complicated parts and recoat parts

This machine is suitable for the coating of simple, flat workpieces

This machine is suitable for the coating workpieces with complicated shapes

This application mode is suitable for the over-coating of workpieces

Which are already coated.

1. CE certificate

2,powder hopper

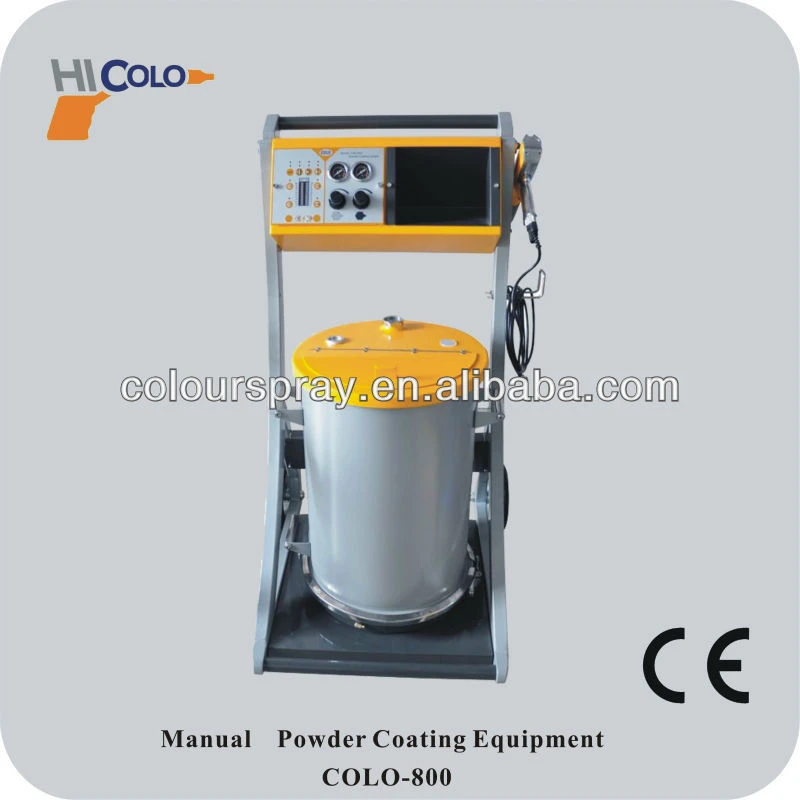

manual powder coating equipment

built-in high voltage electrostatic generator

1. Powder applicable:

All coating powder specially for metal powder

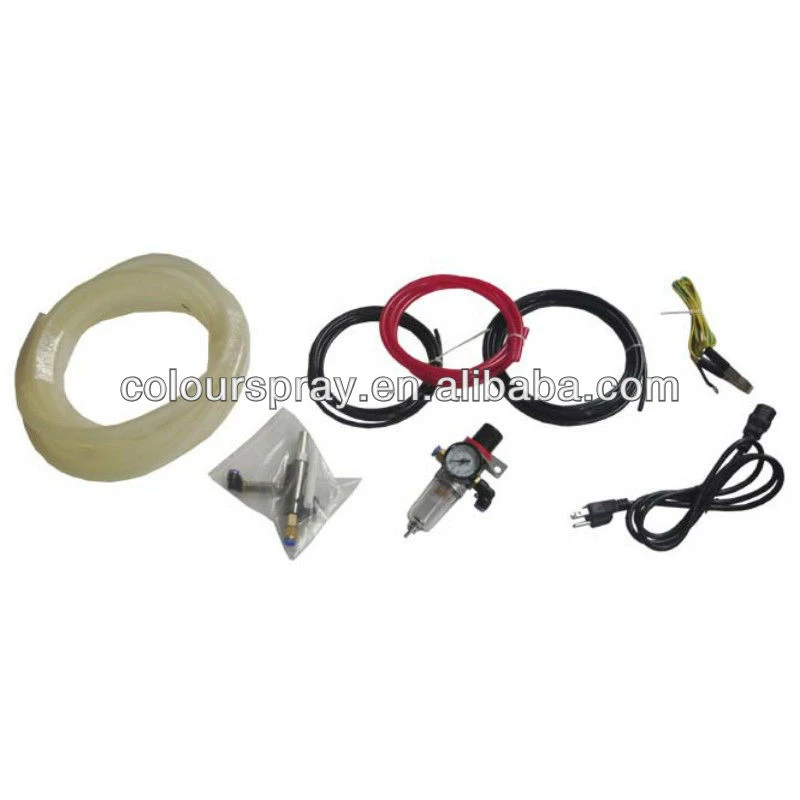

2. Configuration:

Host = 1 pc

Powder Spray Gun = 1 pc

Powder hopper = 1 pc

Trolley = 1 pc

Powder pump = 1 pc

Oil-water separator = 1 pc

Air pressure regulating valve = 1 pc

Technical data:

Electrical data

Mains input voltage: 220V/110V

Operating frequency:50HZ /60HZ

Powder:50W

Output voltage (to the gun):0-100KV (  adjustable)

Maximum output current (to the gun):     180UA(max)

Protection type:IP54

Approvals:CE Certification

Pneumatical data

Input pressure: min. 6 bar(87PSI)/max. 10 bar(145PSI)

Recommended input pressure: 7 bar(101.5PSI)

Max. water vapor content of the compressed

air 1.3 g/m³

Max. oil vapor content of the compressed air 0.1 mg/m³

Dimensions

Carton size:68x52x84cm  G.W:37kg

powder coating gun, powder coating machine, powder coating system,powder coating equipment,powder coating control unit

The process of the coating is like this :the powder isfluidized in the powder hopper. The injectorstransport the powder through the hoses to the guns . The guns spray a powder/air mixture onto the workpieces.

COLO Powder Coating Systems is a top supplier of powder coating machine and powder coating equipment including automated equipment, spray booths and spare parts for itw gema , wagner , nodrson , kci famous brand in china.
