Powder Cup Gun Kit
Powder Cup Gun Kit
Price
US $1-900
Model
660T-C
MOQ
1 piece

Item specifics

Type
Powder Cup Gun Kit
Substrate
METALLIC
Coating
Powder Coating
equipment
powder coating system

Review

Description

Powder Cup Gun Kit

powder coating system

Electrostatic powder coating machine:


Popularly used in the metal workpiecess surface treatment
Built-in high voltage electrostatic generator
Powder applicable: All kinds of powders

can matched with different powder spraying guns,



 powder spray gun,metallic powder coating system, electrostatic powder spraying unit,electrostatic powder coating ,electrostatic powder spraying.

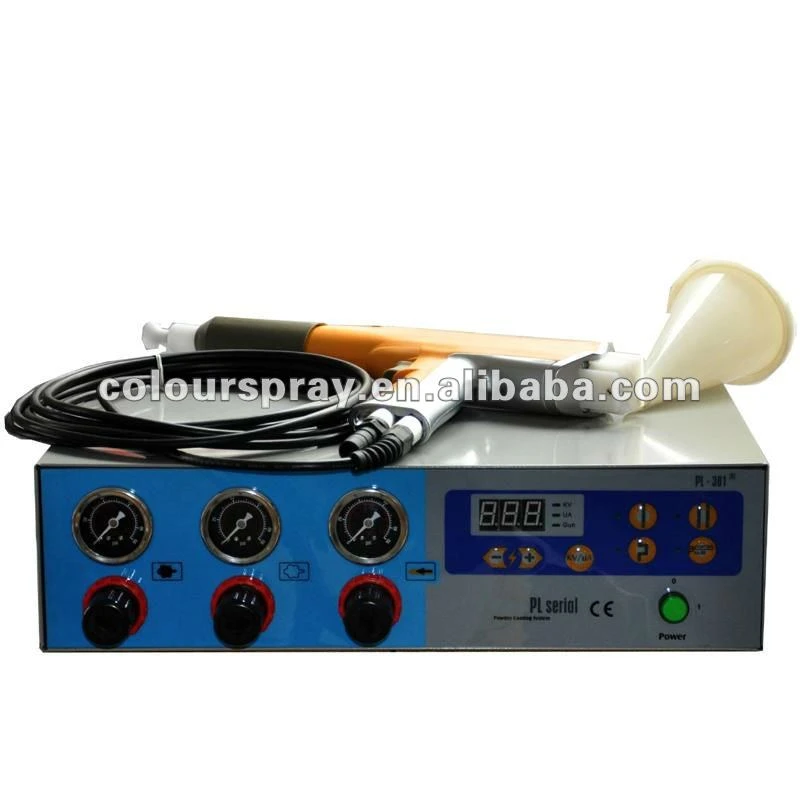

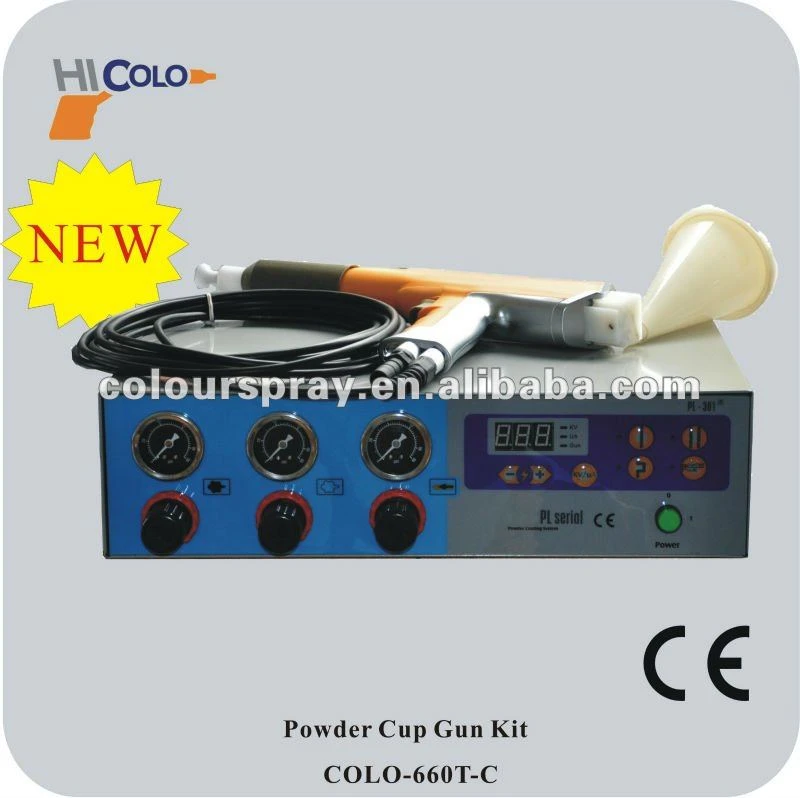

COLO-660T-C ,Designed for small sample testing or powder manufacturers, the Cup Unit incorporates the application cup to the gun. The cup is self-fluidizing and is easy to clean, making color changes fast and easy.

Powder Cup Gun Kit

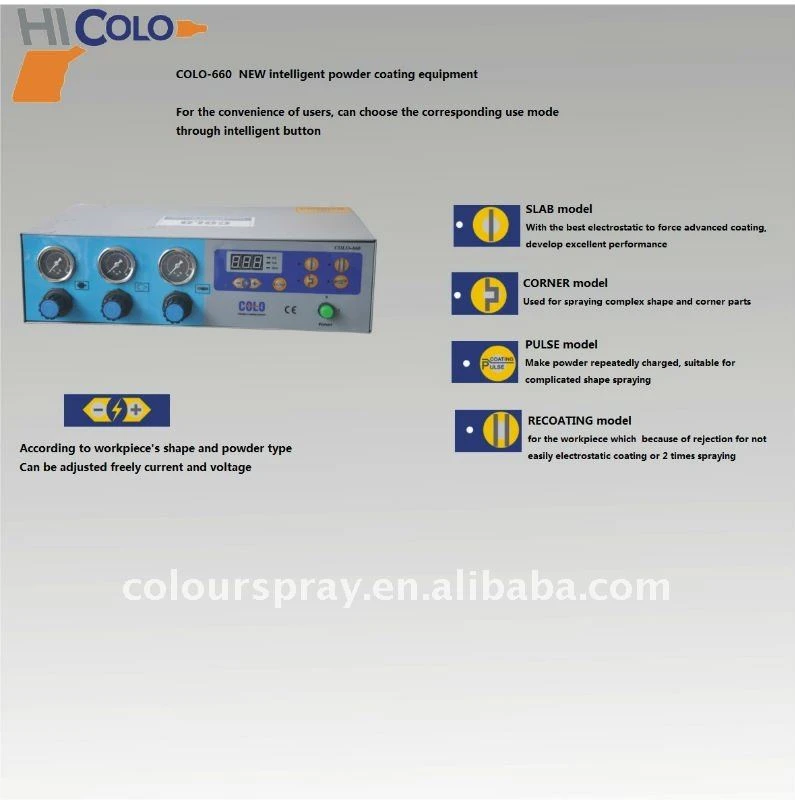

COLO-660  NEW intelligent powder coating equipment

For the convenience of users, can choose the corresponding use mode through intelligent button

Powder Cup Gun Kit



660 Series Features and Specifications:

0-100 Digital Adjustable KV
Fully Adjustable Amperage
Pulse Power Technology for beating Faraday Cage Effect.
Able to cut Pulse Power on and off
Control unit has one-touch intelligent operation button good for flat parts, complicated parts and recoat parts.Easy to operate.
Fully Adjustable Air for Pump on Pressure, Dosage and Nozzle Rinsing Air.
Comes with Full Array of Nozzle Assortment.
Field Tested and Proven to operate in the toughest environments.
Comes with different array of delivery systems:
Canister Feed - 2 Pound (12Pound,16pound also could availbale)

Because this system was designed with the Pulse Power Built in its
Electronics it is specially balanced for the maximum spray capability with
the Smoothest Finish Possible.


Configuration:

A control unit power supply cable

- A air filter

- A air pressure regulator

- A fluidized powder hopper

- An manual powder gun with gun cable, powder

hose, rinsing air hose and standard nozzle set.

- Pneumatic hoses for conveying air (red), supplementary

air (black) and fluidizing air (black)

powder hose

Ground wire



Data:

A) Control unit

Input voltage: 110V-220V

Frequency: 50-60Hz

Input powder: 50W

Pneumatic control voltage: 24V DC

B) Compressed air data:

Max. Input air pressure: 10bar/145psi

Min input air pressure: 6bar/87psi

Max water vapour content: 1.3g/nm

C) Powder Spray Gun

Powder yield: 600g/min

Gun powder: 550G

connection cable: 5m





Manual coating equipment Function description

the powder gun through the powder hose . The powder is electrostatically

charged at the nozzle of the gun. In addition, an electrostatic field is

created between the gun nozzle and the grounded object. The charged

powder spray remains adhered to the surface of the object.

The powder is fluidized by air forced through a porous plastic plate from

below. The powder acquires, thereby, fluid-like characteristics.



There are many model could available

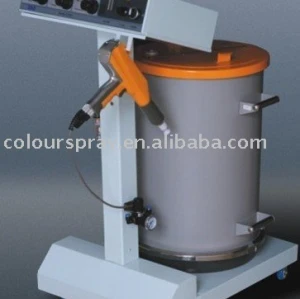

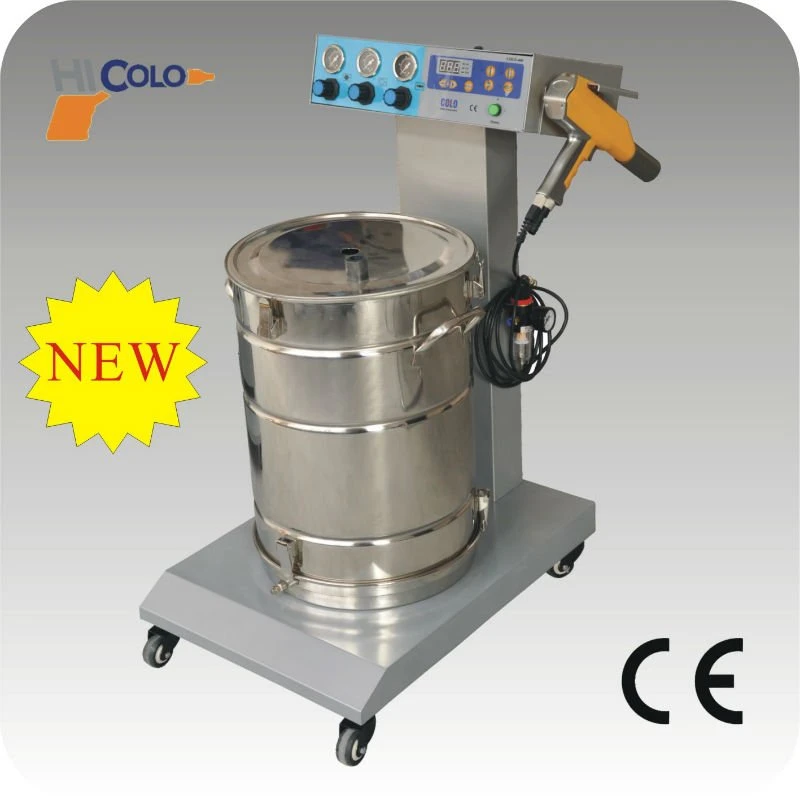

1,Hopper feed unit (45L) COLO-660

Powder Cup Gun Kit



 2,Cup Unit COLO-660T-C

Powder Cup Gun Kit

3,automatic unit COLO-660T-A

Powder Cup Gun Kit

The process of the coating is like this: The powder is fluidized in the powder hopper. The injectors transport the powder through the hoses to the guns. The guns spray a powder/air mixture onto the workpieces







COLO Powder Coating Systems is a top supplier of powder coating systems and powder coating equipment including manual powder coating equipment, automatic equipment, spray booths,ovens and spare parts for itw gema, wagner, nodrson, kci famous brand in China.







China Powder coating gun, China powder coating machine, China powder coating system, China powder coating equipment, powder coating control unit
