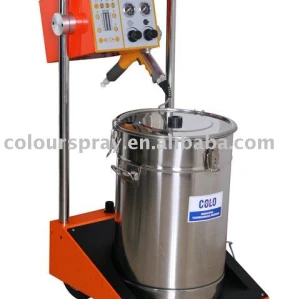

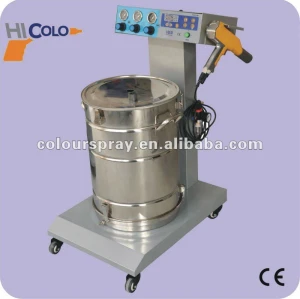

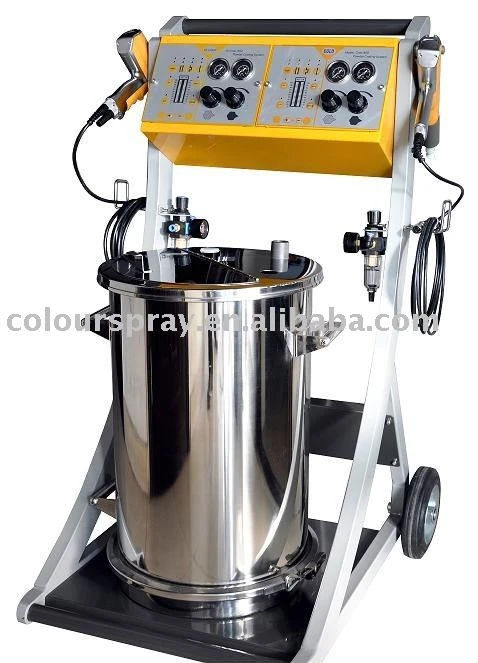

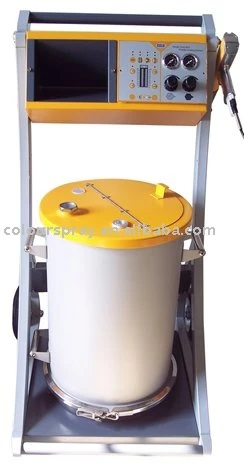

Electrostatic powder coating machine
- Price
- US $0-1000
- Model
- 800
- MOQ
- 1 set
Item specifics
- Type
- Coating Production Line
- Substrate
- Aluminum
- Coating
- Powder Coating
- pluse coating
- optiflex
- save powder
- high quality
Review
Description
Technical Data:
Control air unit
Input voltage: 220V/110V | Frequency: 50HZ/60HZ | Input power:50W |
Output voltage:Max 20V(peak to peak) | Output current: 0.7 A | Control voltage: 24V/DC |
Work temperature range: -5°C-40°C | Safety: IP54 | |
Compressed air moisture content: 1.3g/m3 max | Input air pressure:4-8kg/m3 | |
Input barometric pressure: 6-8 bar | The largest air consumption:24m3/h | |
Powder spray gun
High Pressure Mode: Inside | Max Power Injection: 650g/min | Max Output Current:150uA |
Polarity: Negative | Output voltage: 0-100KV max | Gun weight: 550g |
Output voltage:Max 20V(peak to peak) | Connection cable: 5M | |
Specifications COLO-700.800
1.intelligence manual electrostatic powder spraying equipment - ITW GEMA OPTIFLEX
2.woking good in flat parts, complicated parts, recoat parts,
3.it deliverys smooth finishes even with metallic powder.
4.A unique Powder coating machine built for customers who want to start with the basic model. It is ideally suitable for medium to low volume job coating as well as end users. The Spray right is also a popular powder coating machine as a stand by option for mission critical operations.
Factory
Hangzhou Color Powder Coating Equipment Co., Ltd. is a manufacturing supplier in China, who is professional in research and development, production, sales and service together in the line of the electrostatic powder coating equipment.
Our main products are: electrostatic generators, electrostatic spray gun, high pressure module, circuit board, powder hopper, automatic reciprocating machines.With advanced productivity, high-quality testing technology, excellent R & D capability and advanced design,
we focus on making COLO-products as a famous brand. What's more, COLO coating equipment has been reputed to be of good quality by USA, Canada, France, Germany, Italy, Mexico, Colombia, Peru, Brazil, Russia, Poland, Egypt, Vietnam, India, Saudi Arabia, South Africa and so on more 70 countries
My mobile:0086-15958121259.
welcome to contact us to get more detail information !!!
