Manual Electrostatic Powder Spraying Equipment

Self-examination function: Easy to maintain and repair
- Trouble Indication Function
- Disconnection Indication Function

Maximized powder saving due to excellent penetration into surfaces that is to be coated

Maximized productivity through excellent penetration into various products by automatic electrostatic control function

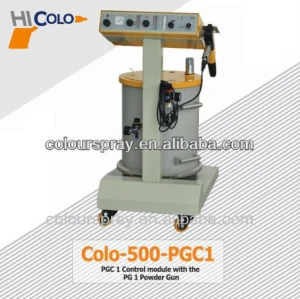

Electrostatic Powder Coating machine

Model: colo-500
Technical Data:
Input Voltage: AC110/220V 50-60Hz-
Output Voltage: DC 0-100KV Adjustable
Frequency: 28-35KHz
Output current: 0-150uA
Air Source pressure: 0.5MPa
Max. Consumption: (0.4MPa)13.2m/h
Max output: 0.5mpa
Dead weight of voltage multiplier gun: 500g
Powder Container Volume: 45L
Max. Storage: 26Kg
Working Temperature: -20-50
Net Weight: 26 Kg
G. W: 44 Kg

Packing List of complete set
1. Spray Gun (with 5m cable)
2. Powder container (powder pump and accessory)
3. Control Box for regulating air
4. Filter: 1
5. Part List
6. Windpipe
7. Cart set frame
8. English User manual
The types of nozzles available
Circular nozzle: 1
Flat nozzle: 1
Lengthen nozzle: 1
(Accessory: Spray head, nozzle, flat nozzle fuse)
