Manual Box-Feed Unit
Manual Box-Feed Unit
Price
US $1-1500
Model
700V-2
MOQ
1 set

Item specifics

Type
Coating Spray Gun
Substrate
Other
Coating
Powder Coating
manual powder coating unit
box feed system

Review

Description

700V-2

powder coating gun, powder coating machine, powder coating system,powder coating equipment,powder coating control unit



COLO Powder Coating Systems is a top supplier of powder coating systems and powder coating equipment including automated equipment, spray booths.

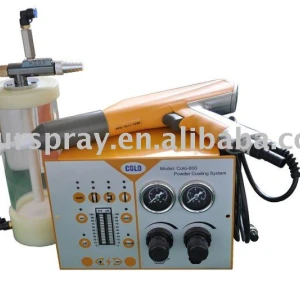

This intelligent powder coating machine - colo-700V -2



The process of the coating is like this :the powder is vibrated in the powder box. The injectors transport the powder through the hoses to the guns . The guns spray a powder/air mixture onto the workpieces.

Character:2pcs spray guns+2pcs controller,controller has one-touch intelligent operation button good for flat parts, complicated parts and recoat parts



This machine is suitable for the coating of simple, flat workpieces

This machine is suitable for the coating workpieces with complicated shapes

This application mode is suitable for the over-coating of workpieces

which are already coated.

Box feed model with original powder box, it is very easy to change color and develop the working efficiency



Technical data:



Electrical data

Mains input voltage: 220V/110V

Operating frequency:50HZ /60HZ

Powder:50W

Output voltage (to the gun):0-100KV ( adjustable)

Maximum output current (to the gun):     180UA(max)

Protection type:IP54

Approvals:CE Certification



Pneumatical data

Input pressure: min. 6 bar(87PSI)/max. 10 bar(145PSI)

Recommended input pressure: 7 bar(101.5PSI)

Max. water vapor content of the compressed

air 1.3 g/m³

Max. oil vapor content of the compressed air 0.1 mg/m³



Dimensions

Carton size:120x79x73cm              G.W:65kg
