bitty pulse powder spray gun
bitty pulse powder spray gun
Model
COLO-660T-06C

Item specifics

Condition
New
Type
Coating Spray Gun
Substrate
Iron
Coating
Powder Coating
Voltage
220V
Power(W)
50W
Weight
35KGS
Certification
CE
Warranty
1year
After-sales Service Provided
Overseas service center available
Brand
COLO
machine
powder coating equipment
part
powder coating gun
Model
COLO-660T-06C
funktion
pulse funktion
gun
powder spray gun
type
aluminum profiles
Use for
Metal
hopper
MINI
type.
Vibration absorption type

Review

Description

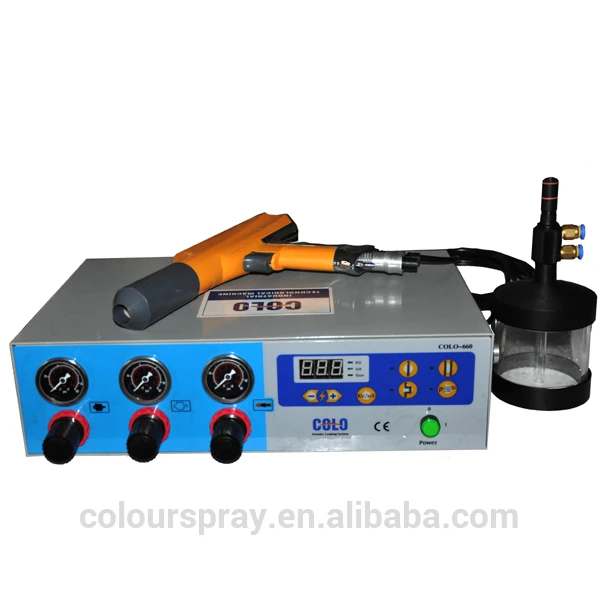

bitty pulse powder spray gun



aluminum profiles pulse powder spray gun
Manual hopper feed unit
Digital display powder spray equipment
touch key

Suitable for heavy duty work

manual powder coating machine

this model is laboratory unit,the perfect solution for laboratory powder coating applications.Designed for short runs,with a 1L fluidizing powder hopper and is easyly cleaned between colors changes.

bitty pulse powder spray gun

Pulse Powder coating system  technology provides excellent transfer efficiencies, superior powder penetration, and a quality finish with no gun adjustments needed.
Powder feed system with air purge for faster, easier maintenance.
Modular hopper disconnects without tools.

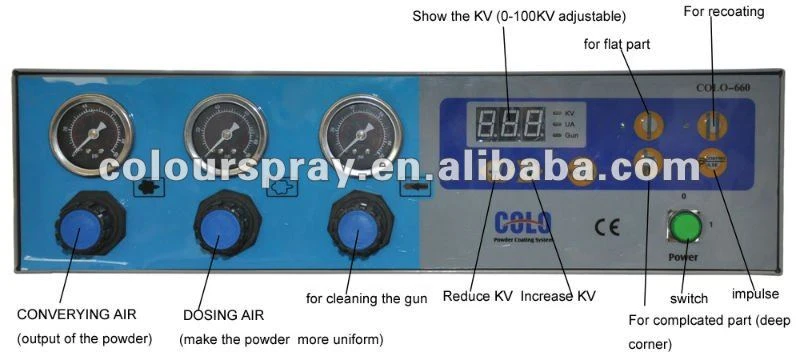

1,Digital control system,display preset Voltage and currency at the same time.
2,Preset Voltage and currency be setted by knobs, easy to operate.

3,Alarm automatically if over the preset parameters
4,Adjust the outputstatic electricity automatically according the change of workpiece’s size and distance
5,Could supply large amount powder under low pressure.
6,The inside circuit region is Independent sea, avoiding the powder incoming.

7,Good quality pressure gauge
8,Good quality dust-proof powder switch

9,Control the useless power strictly,low heating value,work continuously and steadily.





Electrical data



Mains input voltage: 220V/110V



Operating frequency:50HZ /60HZ



Powder:50W



Output voltage (to the gun):0-100KV (  adjustable)



Maximum output current (to the gun):     180UA(max)



Protection type:IP54



Approvals:CE Certification







Pneumatical data



Input pressure: min. 6 bar(87PSI)/max. 10 bar(145PSI)



Recommended input pressure: 7 bar(101.5PSI)



Max. water vapor content of the compressed



air 1.3 g/m³



Max. oil vapor content of the compressed air 0.1 mg/m³



bitty pulse powder spray gun

1. CE certificate

2,powder hopper

manual powder coating equipment

built-in high voltage electrostatic generator

1. Powder applicable:

All coating powder specially for metal powder

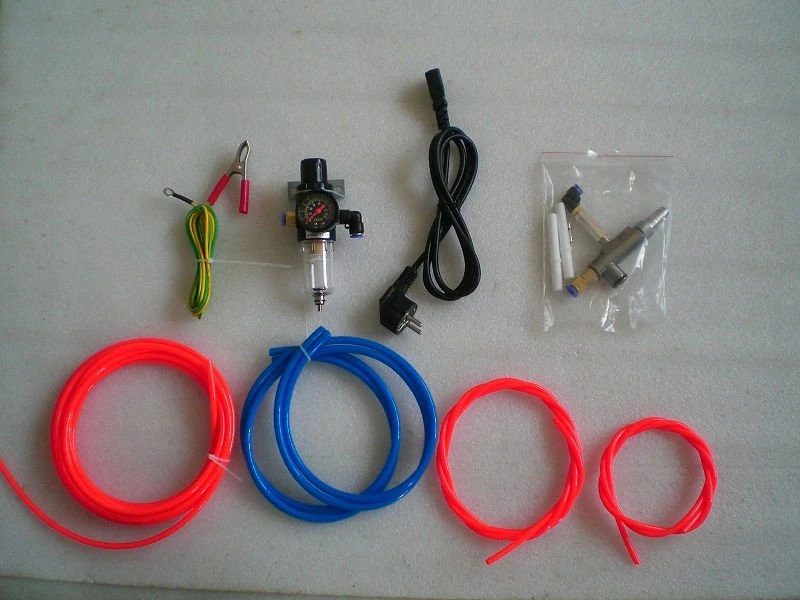

2. Configuration:

Host = 1 pc

Powder Spray Gun = 1 pc

Powder hopper = 1 pc

Trolley = 1 pc

Powder pump = 1 pc

Oil-water separator = 1 pc

Air pressure regulating valve = 1 pc

bitty pulse powder spray gun



 bitty pulse powder spray gunbitty pulse powder spray gun






bitty pulse powder spray gun



powder coating gunpowder coating machinepowder coating system,powder coating equipment,powder coating control unit







The process of the coating is like this :the powder isfluidized in the powder hopper. The injectorstransport the powder through the hoses to the guns . The guns spray a powder/air mixture onto the workpieces.







COLO Powder Coating Systems is a top supplier of powder coating machine and powder coating equipment including automated equipment, spray booths and spare parts famous brand in china.



bitty pulse powder spray gunbitty pulse powder spray gunbitty pulse powder spray gun
