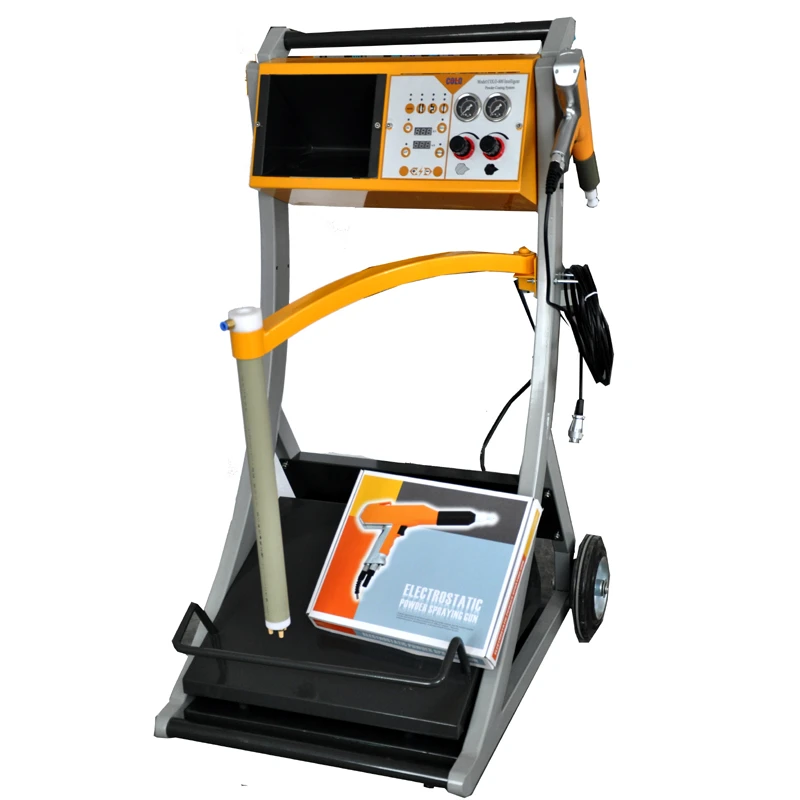

Manual box-feed powder coating unit
Manual box-feed powder coating unit
Price
US $800-1500
Model
colo-800V
MOQ
1 piece

Item specifics

the machine properties
copy model for swiss famous brand
Product performance
intelligent machine
packing
Wooden cases or cartons
gross weight:
80kgs
Dimension(L*W*H)
120cmX78CMX73CM
Power(W):
50W
Warranty
1YEARS

Review

Description

1.Advantages and characteristics:

manual box unit is good for quick and easy color changes,It is designed to use the powder manufacturer’s original carton. An inclined vibration table allows complete emptying of the powder box via the fluidized suction tube.

2.→Technical Data

The fluidzed powder in the powder hopper is sucked up in the injector by the conveying air. Through the powder hose the powder air mixture reached the gun

.The powder is electrostatically charged immediately it reaches the gun nozzle.An intense field also exists between the gun nozzle and the grounded workpiece. The electrostatically charged powder sprayed onto the workpiece adheres to the latters surface.

.This line voltage is converted in the control module to high –frequence current

this currents stpped up by the high-voltage transformer and the HV-cascade in the gun to 100KV and applier to the electrodes.

.The converying air and the dosing air is to be requlated on the control module , the fluidizing air on the peneumatic unit.

.The powder is fluidized by forcing air from bleow truough a proous plastic plate.

.The fluidized powder gets liguld –like properties.

→Technical Data

Electrical data

Power range                                   220V

Frequency                                     50HZ

Temperature range in use                      -10 ℃+50 ℃

Powder Gun

Gun weight:    ………………                    500G

Rated output voltage ………                      24VDC

Input voltage     ……………                       - 200kv

Maximum output current  ………                   180Ua(max)

Maximum output voltage…………                   0-100KV (  adjustable)

Maximum powder injection :………                    600g/min

Polarity ………………                                negative (-)

Pneumatic data

Maximum input-air pressure …………..                 10kg/cm

Optimum input-air pressure……..                        6kg/cm

Minimum input-air pressure   ……                      4kg/cm

Maximum water vapor content or compressed air …..      1.4g/N m3

Maximum oil vapor content of compressed air   ……..     0.1ppm

Maximum compressed-air consumption………            13.2 m3/h

Dimensions

Width

690mm

Depth

800mm

Height

1135mm

Weight

45kgs

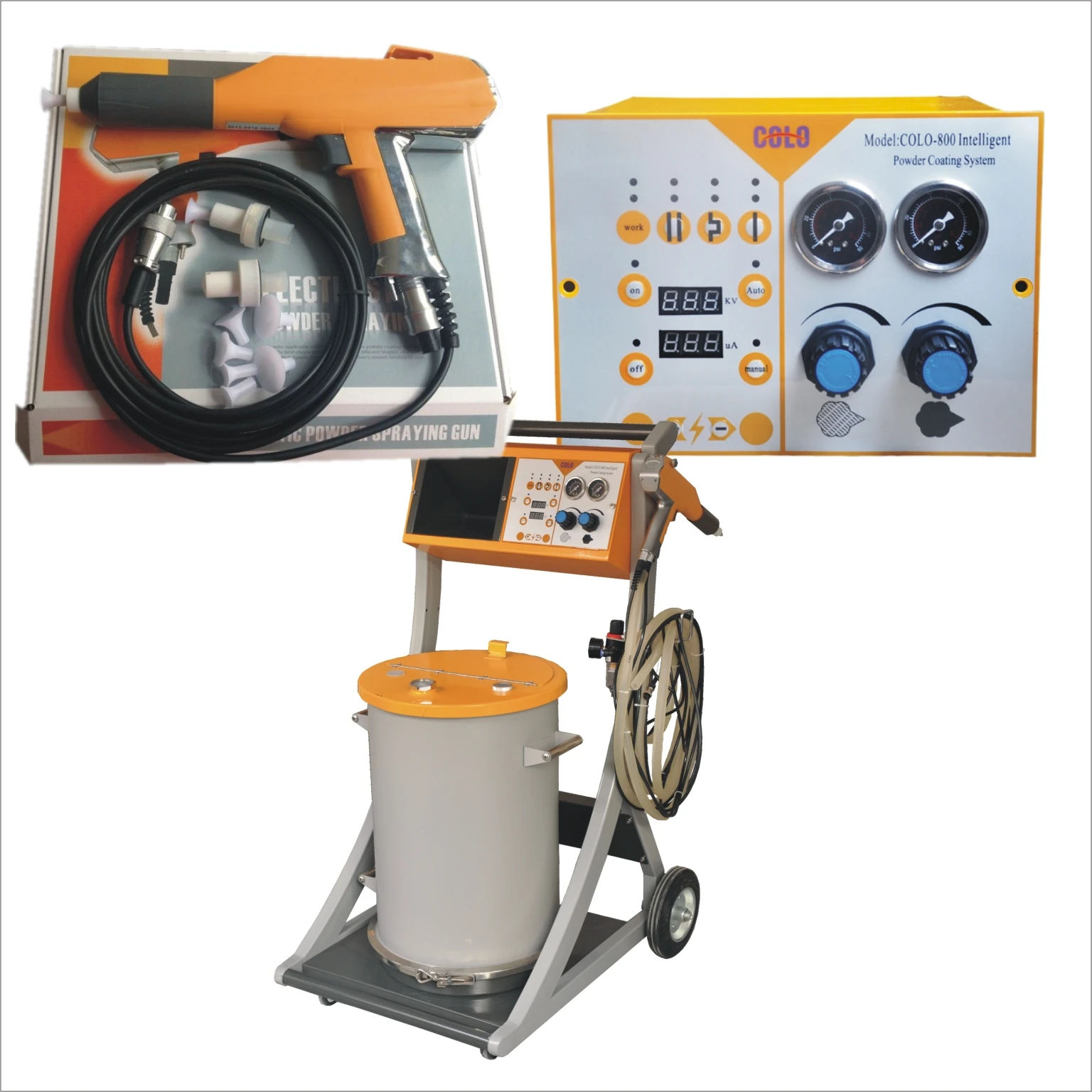

3.Product display
